Connect your CloudGate NXS via the LAN ethernet port to a computer with an Ethernet cable and start to configure the device locally using the on-device web interface. The web interface allows you to configure one device at a time.
TIP: To provision a number of CloudGate's at once, use the web interface to create a configuration file and use the CloudVIU Provisioning to provision the configuration to multiple devices. The procedure how to do this is explained in this guide.
In the Logging On section you can learn how to log on to the on-device web interface.

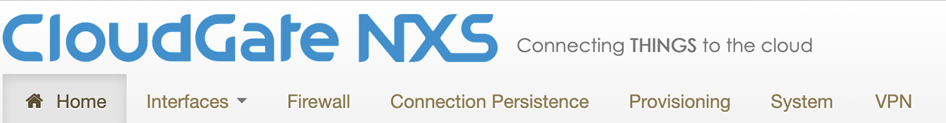

The web interface displays a number of tabs based on the expansion cards installed. For the CloudGate base unit with no expansion cards, the following default tabs are available: Home, Interfaces, Firewall, Connection Persistence, Provisioning, System and VPN. In the Interfaces tab you can select between Main Ethernet and or LTE Connection.
| Click this tab | To do these tasks |
|---|---|
| Home | - Verifying the Internet Connection - Checking the Firmware Version |
| Interfaces, then select Main Ethernet | - Disabling the WAN/LAN Switchover Feature - Managing IP Configuration Settings |
| Interfaces, then select 3G Connection1 | - Configuring the WWAN Interface - Choosing a Wireless Operator - Setting Up SIM Parameters - Setting Up WWAN Connection Parameters - Choosing PIN Code Settings - Setting up Verizon Wireless or Sprint wireless operators |
| Firewall | - Setting Default Firewall settings - Setting Up the DMZ - Setting Up Inbound Port Forwarding - Setting Up Outbound Port Filtering - Setting Up Outbound Trusted IPs - Setting Up Static Routing |
| Connection Persistence | - Configuring the Connection Watchdog - Configuring the Automatic Timed Reset |
| Provisioning | - Setting up Automatic updates |
| System | - Setting up the Time Zone - Setting up Remote Access to the CloudGate - Setting up a Dynamic DNS Service - Changing the Username and Password - Creating Log Files - Download a configuration file - Manually Resetting the CloudGate |
| VPN | - Setting up Tunnel Management |
